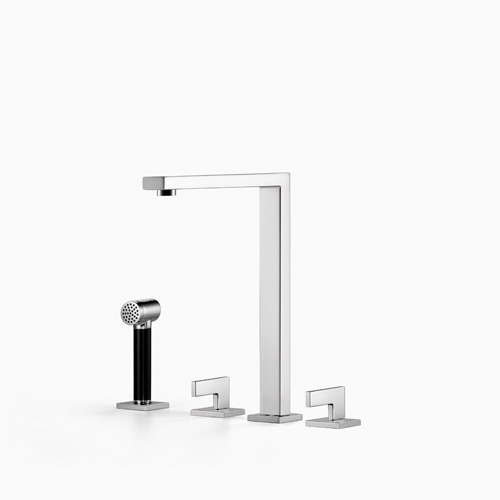

Lot with Rosettes and Rinsing Spray by Dornbracht

Lot with Rosettes and Rinsing Spray by Dornbracht
Lot with Rosettes and Rinsing Spray by Dornbracht
LOT is sculptural in appearance; an extremely architectural fitting with an ultra flat one-piece spout. It focuses on function, draws back - and that is just what makes it so striking. Combined with the surface in matt platinum, its character oscillates between the severity of the form and the warmth of the material. LOT is uncompromising, pared down and yet functional - a fitting for modern, discerning architectural kitchens. Pure, clean and elegant.

3 Hole Mixer with rinsing spray set
235 mm projection
Pivotable spout 360°
Height of mixer 345 mm
Hole diameter rinsing spray 32 mm
Hole diameter spout 35 mm
Hole diameter deck valve 32 mm
M 24 x 1 aerator – male thread
1/2" deck valves with ceramic head parts
2x M 10 x 1 x 420 mm high pressure hose
Automatic spout/shower diverter
2x 1/2" x 1/2" x 300 mm high pressure hose
Attachment tube with 185 mm fitting
Compression joints
Individual rosettes 55 x 55 mm
1750 mm metal shower hose for rinsing spray set
Max. flow three-hole mixer 8.3 l/min at 3 bar flow pressure
Max. flow rinsing spray max. 7 l/min at 3 bar flow pressure
Sprayface with anti-scaling system
Intrinsic protection against back flow.
Recommended minimum flow pressure: 2.5 bar.
Operating unit can be positioned freely.
Details
SKU 1380
Model 20 810 680 + 27 714 970
Typical lead time 1 - 4 weeks

Our price: £1550.00 (1937.50)
